2022 Airlines Departure Data Warehouse in PostgreSQL

📌 Overview

This project demonstrates the design of the 2022 Airlines Departure Data Warehouse using PostgreSQL. It is modeling historical U.S. domestic departure flight data into a query-optimized data warehouse following using dimensional modeling (star schema) approach. The goal of this project is to transform raw CSV files into a data warehouse that supports efficient querying, reporting, and analytics for airline departure operations and performance metrics. The project uses the Medallion Architecture which organizes data processing into layered zones — Bronze, Silver, and Gold.

Key Features:

Dimensional database modelling (star schema).
Applying Medallion Architecture.
Demonstrating SQL usage and quaries for extracting meaningfull information.
Provide insights into airline performance, delays, cancellations, and operational trends.

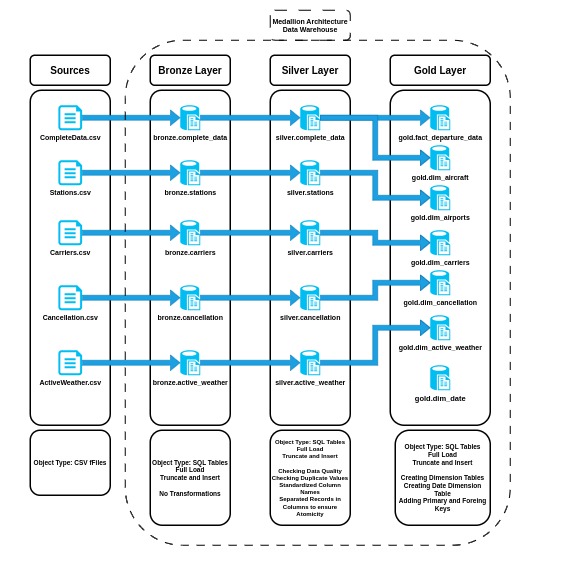

schema_figure

🧱 Architecture Layers

Bronze Layer

Raw flight, cancellation, carrier, weather, and airport data stored in CSV files
Data loaded into staging tables in the bronze schema without transformation.
Data quality check performed (check row count, null values, duplicated rows and date range).
Preserving raw data.

Silver Layer

Data validation, cleansing and transformation, when needed.
The raw data is already relatively clean, so minimal transformation was applied.
Data separation in columns to apply consistent formatting and ensure atomicity and the 1NF.
There is missing data in the weather reports due of cancelled flights mostly.

Gold Layer

Creating and loading data into dimension and fact tables.
Follows a star schema structure for business intelligence, reporting, and analytics.
Creating indexes to increase query performance.
Date dimension table added to support time based aggregation.
Generating flight_id as surrogate key by combining multiple columns uniquely identifying each flight.

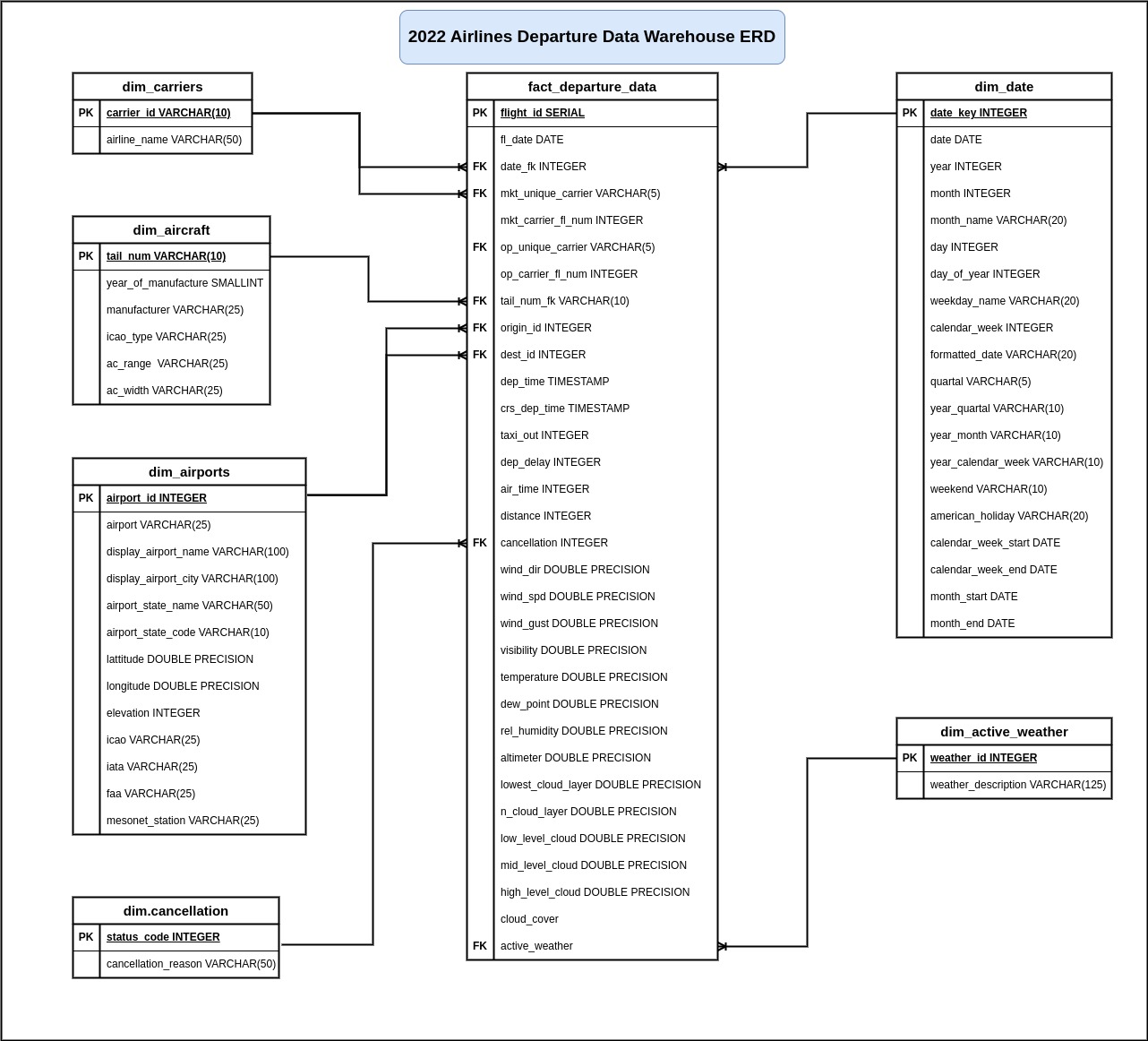

🗃️ ERD Diagram

dw_figure

Exploratory Data Analysis (EDA)

Exploratory Data Analysis performed to gain more insight from the departure dataset.
In this section I am leveraging SQL queries to extract summary statistics and trends.
Demonstrates SQL concepts, including aggregation, window functions, ranking, subqueries and analytical computations.

🧰 Tech Stack

PostgreSQL
SQL

📁 Repository Structure

├── analytics_sql_scripts
│   └── eda.sql
├── data
│   ├── ActiveWeather.csv
│   ├── Cancellation.csv
│   ├── Carriers.csv
│   ├── CompleteData.csv
│   └── Stations.csv
├── data_warehouse_sql_scripts
│   ├── 1_bronze_layer
│   │   ├── bronze_layer_quality_check.txt
│   │   ├── ddl_create_bronze_layer_tables.sql
│   │   └── dml_loading_bronze_layer_data.txt
│   ├── 2_silver_layer
│   │   ├── ddl_creating_silver_layer_tables.sql
│   │   └── dml_loading_silver_layer_data.sql
│   ├── 3_gold_layer
│   │   ├── add_surrogatekey_to_fact_table.sql
│   │   ├── create_indexes.sql
│   │   ├── ddl_creating_gold_layer_tables.sql
│   │   └── dml_loading_gold_layer_data.sql
│   ├── ddl_create_database.sql
│   └── ddl_create_schemas.sql
├── docs
│   ├── airlines_dw.png
│   └── departure_dw_erd.jpg
├── EDA.md
├── LICENSE
└── README.md

🔗 References

Kaggle - 2022 US Airlines Domestic Departure Data https://www.kaggle.com/datasets/jl8771/2022-us-airlines-domestic-departure-data
PostgreSQL Documentation https://www.postgresql.org/docs/

✅ This project uses only publicly available data for educational purposes.
